Detalhes do produto
Lugar de origem: China
Marca: Dingang
Certificação: SGS,ITS,BV
Número do modelo: Dingang-PPAL
Termos de pagamento e envio
Quantidade de ordem mínima: 1000 Kgs / 1 Tonelada Métrica
Preço: Negociável
Detalhes da embalagem: Embalagem em condições de navegar com palete de madeira
Tempo de entrega: Dentro de 30-45 dias
Termos de pagamento: L/C à vista ou 30% T/T adiantado como depósito e saldo de 70% contra a cópia B/L
Habilidade da fonte: 5.000 toneladas/por mês
Nome: |
Bobina de alumínio pré-pintada |
Liga: |
3005 |
Grossura: |
0,5MM |
Largura: |
1220MM |
Liga ou não: |
É liga |
Aplicativo: |
Tabuleta de Publicidade |
Amostra: |
Disponível |
Espessura do revestimento: |
PVDF:Não inferior a 25um PE:Não inferior a 18um |
Reciclável: |
Sim |
Nome: |
Bobina de alumínio pré-pintada |
Liga: |
3005 |
Grossura: |
0,5MM |
Largura: |
1220MM |
Liga ou não: |
É liga |
Aplicativo: |
Tabuleta de Publicidade |
Amostra: |
Disponível |
Espessura do revestimento: |
PVDF:Não inferior a 25um PE:Não inferior a 18um |
Reciclável: |
Sim |

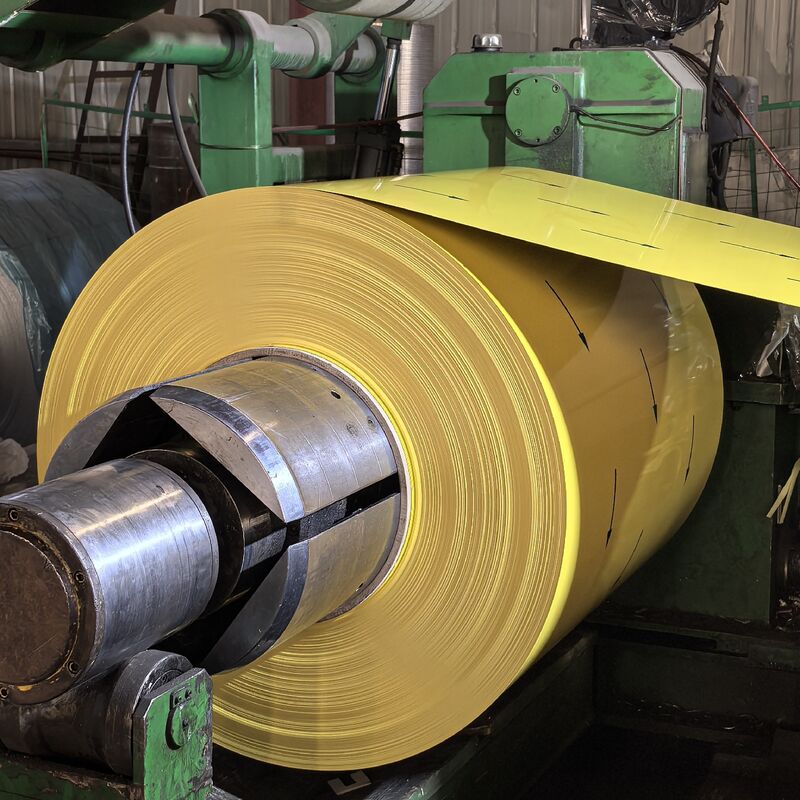

The AA3005 H24 0.5MM prepainted aluminium coil is a professional-grade material engineered specifically for manufacturing advertising signboards. It takes AA3005 aluminium alloy—an Al-Mn series alloy renowned for its rust resistance—as the base, with a substrate thickness of 0.5mm that strikes a perfect balance between sturdiness and processability. The alloy is treated to reach the H24 temper (semi-hard state) via annealing, controlled cold rolling, and stabilization, ensuring it maintains shape stability while allowing flexible fabrication. Its surface is coated with a high-adhesion, weatherproof paint layer (15μm-50μm per side, customizable by demand), which delivers vibrant, long-lasting colors and reliable protection against external environmental factors, making it an ideal choice for both indoor and outdoor advertising signboards.
| Product | Color Coated Aluminum Sheet/Prepainted Aluminium Coil |
| Thickness | 0.1-2.0mm |
| Width | 30-1600mm |
| Material | 1050, 1060, 1100, 3003, 3004, 3105, 5052, 5005, 5754, 5083, 6061,8081 etc |
| Temper | O, H12, H14, H16, H18, H24, H26, H32, H34, etc |
| Inner Diameter | 405mm,505mm,150mm,etc. |
| Color | RAL, Pantone Color Or As Alient's Demand |
| Coating thickness | PVDF Paint Coating: Not Less Than 25um |
| PE Paint Coating : Not Less Than 18um | |
| Packing | Export Standard Wooden Pallets (Eye To Wall,Eye To Sky) |
| Payment Terms | L/C at sight or 30% T/T in advance as deposit, and 70% balance against the B/L copy. |
| MOQ | 3 Tons Per Specification |
| Delivery Time | Within 30-45 Days |
| Loading Port | Shanghai,Ningbo,Qingdao,Tianjin Port and Etc |
| Application | Aluminum Roofing,ACP,Roller Shutter Window,Roller Shutter Door,Aluminum Ceiling,Aluminum Grilling,Aluminum Downspout System,Home Appliance's Plate, body tank of cold chain truck,high speed rail,aluminum pull ring,food packaging,outer packing case of capacitor,external contour of letter channel |
3. Vibrant & Customizable Colors
4. Lightweight & Easy Installation
5. Low Maintenance & Cost-Effective
